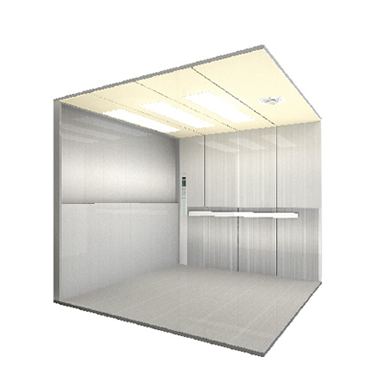

Freight Elevator : Medium Capacity
- Drive method
- Rope Traction
- Standard load
- 2000KG
- NO. of passengers
- 3 ~ 5
- Max.number of landings
- 5
- Max.travel
- 12M
- Mini.overhead
- 2700mm(for car height 2150mm)
- Mini.pit
- 1500mm
- Main power
- three phases 380V 50Hz
- Speed
- 0.5/1.0 m/s
- Power
- 11kw
- Ratio
- 1:1
- Doors
- Automatic Door, Side or Vertivcal
- Shaft
- concrete/steel frame
- 1
- No call back to main floor
- 2
- Setting landing door & car door time
- 3
- Door close time protection
- 4
- Door open & close button
- 5
- Fireman switch
- 6
- Car emergency light
- 7
- Full collective
- 8
- Floor(number)indicator
- 9
- Car call panel & hall car penel
- 10
- Direction indicator
- 11
- Intercom(from car to machine room & control room)
- 12
- Full load bypass
- 13
- Overload protection(warning light & buzzer)
- 14
- Run time indicator
- 15
- Car top & machine room emergency running
- 16
- Car manual ventilation & lighting automatic control
- 17
- Failure automatic inspection
- 18
- Alarm
- 19
- Light screen protection
- 1
- Arriving gong
- 2
- External Telephone line form car to controller cabin
- 3
- Automatic Resue Device (ARD)
- 4
- Auto re-leveling
