Powered Motor (PM486FE)
Description
Powered Motor(PM486FE)

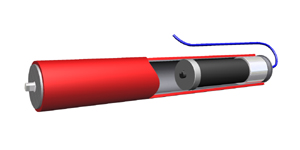

1.91"(48.6mm) Diameter 24V DC Motorized Roller

Ask here to find the product that meets your needs
if you want more detailed specifications Or to purchase lot of products, please leave your message and specification. Or Email to us
Unit Price
$0
Number
ea

VIEW LIST

Detailed Information


Features



The Power motors are rigidly designed to operate
with low DC voltage for sophisticated control system.

◎Storong motor torque.
◎Long motor life.
◎Variale Speed.
◎Class E insulation.
◎Dynamic brake.
◎ Highly durable gears and structure
◎ Supplied with hex Shafts
For Conveyor


Operation


Continuous or intermittent operation
Maximum number of starts/hour: 1800(30 cycles/minute)
Minimum contact time: 1.0seconds ON, 1.0seconds OFF

Applicable ambient temperature: 0 ~ +40℃
Reversible

Specification


Model Rated Voltage(VDC)No-load Speed(r/min)No-load Current(A)Rated Speed(r/min)Rated Torque(Nm)Output Power(W)Gear ratio
CC52-1212934.18417.25951:43
CC52-2424904.58219.351051:43



Ask here to find the product that meets your needs
If the information on Description is not clear at this time, write INQUIRES at left side of menu bar for the availability of further information.
